5-axis Machining Centers

Including the ''VARIAXIS'' series, we have a wide range of lineup and support for automation systems to meet the needs of various customers. Multi-sided machining and complex 3D curved surface processing with simultaneous 5-axis control are possible with a single setup.

Tilt table type

Series name	Pallet size	Tool shank	Standard Max. spindle speed	Max. workpiece dimension

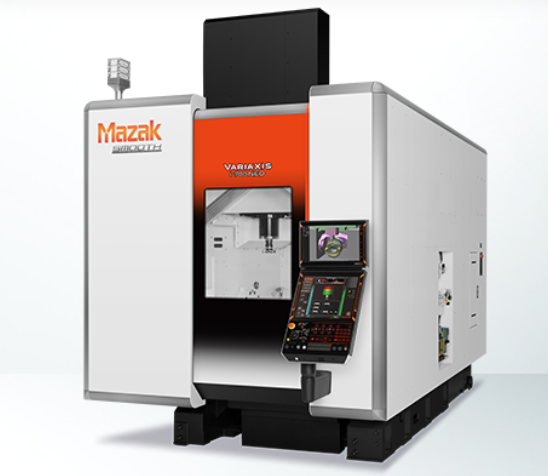

Environmentally-friendly VARIAXIS i NEO	Φ600 mm × width 500 mm / Φ700 mm × width 500 mm	BT40	12000 min-1 (rpm)	Φ700 mm × 450 mm / Φ850 mm × 500 mm
Environmentally-friendly VARIAXIS i NEO	Φ800 mm × width 630 mm	BT50	10000 min-1 (rpm)	Φ850 mm × 500 mm (Φ1000 mm × 415 mm)
Best Selling Machines VARIAXIS i	Φ500 mm × width 400 mm to Φ600 mm × width 500 mm	BT40	12000 min-1 (rpm)	Φ500 mm × 350 mm to Φ850 mm × 500 mm
Best Selling Machines VARIAXIS i	Φ1050mm × width 800mm	BT50	12000 min-1 (rpm)	Φ1250 mm × 900 mm
Compact Entry Model Automation available VARIAXIS C	Φ600 mm × width 500 mm	BT40	12000 min-1 (rpm)	Φ730 mm × 450 mm
Compact Entry Model VARIAXIS j	Φ500 mm × width 400 mm	BT40	12000 min-1 (rpm)	Φ500 mm × 350 mm
High-mix, low-volume production Automation available VARIAXIS i-300 AWC	Clamp interface HSK-A100 holder	BT40	12000 min-1 (rpm)	Φ350 mm × 315 mm

Tilt Spindle Type

Series name	Pallet size	Tool shank	Standard Max. spindle speed	Max. workpiece dimension
Tilt spindle (B-axis) Vertical For large workpieces VORTEX i-V	630 mm × 630 mm	BT50	10000 min-1 (rpm)	Φ1050 mm × 1000 mm / Φ1250 mm × 1400 mm
	800 mm × 800 mm	BT50	10000 min-1 (rpm)	Φ1500 mm × 1500 mm / Φ1700 mm × 1600 mm
Tilt spindle (B-axis) Double Column For large workpieces VORTEX e-V	800 mm × 800 mm	BT50	10000 min-1 (rpm)	Φ1450 mm × 1600 mm / Φ1500 mm × 1655 mm
	from 1000 mm × 1000 mm	BT50	10000 min-1 (rpm)	Φ2050 mm × 1600 mm / Φ2300 mm × 1684 mm
Tilt spindle (B-axis) Fixed table For long workpieces VTC	3500 × 820 mm	BT40	18000 min-1 (rpm)	Φ820 mm × 3690 mm
Aerospace Industry Tilt spindle (A-axis/B-axis) VORTEX II	3240 mm × 810 mm / 4000 mm × 1250 mm	BT50	10000 min-1 (rpm)	3240 mm × 810 mm × H725 mm / 4000 mm × 1480 mm × H735 mm
High-speed 5-axis machining Tilt spindle (A-axis/B-axis) VORTEX HORIZONTAL PROFILER	4000 mm × 1250 mm / 4000 mm × 1600 mm	Spindle output 45 / 120 kW (cont. rating)	26000 min-1 (rpm) / 30000 min-1 (rpm)	4000 mm × 1600 mm × H500 mm

Function-specific

Series name	Pallet size	Tool shank	Standard Max. spindle speed	Max. workpiece dimension
Horizontal High-speed 5-axis machining HCR	500 mm × 500 mm	BT40	12000 min-1 (rpm)	Φ700 mm × 643 mm
Die and MoldHigh-accuracy and Ultra-Precision Machining UD	320 mm × 320 mm	HSK-E40	45000 min-1 (rpm)	Φ400 mm × 300 mm

Series name

Pallet size

Tool shank

Standard Max. spindle speed

Max. workpiece dimension

Horizontal High-speed 5-axis machining

HCR

500 mm × 500 mm

BT40

12000 min-1 (rpm)

Φ700 mm × 643 mm

Die and MoldHigh-accuracy and Ultra-Precision Machining

320 mm × 320 mm

HSK-E40

45000 min-1 (rpm)

Φ400 mm × 300 mm

Double Column (with W-axis)

Series name	Table size	Tool shank	Standard Max. spindle speed	Max. workpiece dimension
5-axis double column machining center Universal Head VERSATECH	3000 mm × 2100 mm to 10000 mm × 3100 mm	BT50	8000 min-1 (rpm)	3000 mm × 2750 mm × H1750 mm to 10000 mm × 3750 mm × H1750 mm

Series name

Table size

Tool shank

Standard Max. spindle speed

Max. workpiece dimension

5-axis double column machining center Universal Head

VERSATECH

3000 mm × 2100 mm to
10000 mm × 3100 mm

BT50

8000 min-1 (rpm)

3000 mm × 2750 mm × H1750 mm to
10000 mm × 3750 mm × H1750 mm
